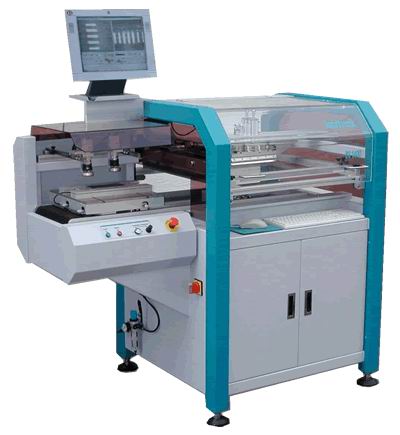

Semi Automatic SMT Stencil Printer	TÜRKÇE
Model:BS1300

·  Precision Printing for 0.3mm fine pitch QFP

·  Built-in Overlay Pattern Vision Alignment Software

·  Flexible Mounting Table for Single & Double side PCB

·  High Accuracy & Repeatable Printing

·  Double Squeegee with dual stroke control

·  Windows 2000 Software

Product Information

(AutoTronik) BS1300 is a very accurate semi-automatic SMT stencil printer which suitable for precision batch printing and prototype work. With built in vision software, the ultra-fine pitch printing for 0.3mm QFP IC is easy to obtain.

Overlay Pattern Vision Alignment (OPVA) Software
OPVA software is specially design for BS1300, the user can align the live image of the PCB to a computer generated overlay pattern. Any fiducial point or PCB pad can be selected as the reference for the overlay pattern, the shape and size of the overlay pattern is selectable, the center of the overlay pattern can be high accurately located by simple single step movement on the computer screen with the resolution of 0.0085mm per step. PCB can be aligned easily within a few seconds by user.

High Accuracy & Repeatable Printing
PCB is fixed on a flexible mounting table which is suitable for single side and double PCB. Adjustment of PCB position, movement of Mounting table and squeegee are all moving on precision linear guides to provide high accuracy & repeatable movement. Double squeegee with dual stroke control system provide efficient saving of solder paste during printing.

Control System
The main control of BS1300 is by Pentium Computer with VGA monitor , the software is working under Windows 98 operating system, and it is a graphical user friendly software, easy and simple operation.

With OPVA Software for PCB alignment , users can align the PCB within few seconds

The on-screen process status show the detail of operation by graphic, simple operation & user friendly.

          Semi Automatic SMT Stencil Printer

          Model:BS1300

Printing Speed :	2 -150mm/s(Servo control)
Table Up/Down Speed:	0.02 -4mm/s(Servo control)
Vision Alignment System	Semi-auto PCB alignment(OPVA)
Stencil Frame size: (External)	450mm X 450mm - 736mm X 736mm
Printing Area :	Max. 350mm X 350mm
	400mm X 450mm(Option)
Board size :	Min. 20mm X 20mm
	Max. 350mm X 350mm
	400mm X 450mm(Option)
Cycle Time	15-25 sec./PCB
Board Thickness	0.2mm - 8mm
Underside Clearance	Max. 26mm
Printing Stroke	Max. 400 mm
Squeegee Pressure	0-15kg
Blade Type	standard Length 250mm
	200mm - 450mm(Optional Length)
XY Adjustment	+/-5mm
Radial Adjustment	+/-2 degree
Registration Repeatability	+/-0.01mm
Support Tooling	Magnetic pin & Vacuum Block
Camera	2 sets of B/W CCD camera
Vision Alignment Resolution	0.0085mm/step
Vision Fiducial	Standard Fiducial, any Pads IC foot pads
Control System	Pentium PC, Windows 2000 perform
Power	110V or 240V.AC
Power Consumption	500 Watts
Air supply	75psi (5.5bar)
Machine Size	L X W X H(1300 X 900 X 1300)mm
Weight	250kg
